HTTP Proxies

Route outbound traffic from your renders through an HTTP proxy you control.

Why use a proxy?

When you configure a proxy, all outbound HTTP requests made while rendering your image are routed through it. This is useful when you want to:

• Restrict access to internal content by allowlisting our proxy’s IP address on your origin (instead of opening it to the public internet).
• Control the egress IP so requests appear to come from a known location.
• Get past bot detection that rate-limits or blocks our shared infrastructure IPs.

Recommended proxy providers

You can use any HTTPS proxy that’s reachable from the public internet. If you don’t already have one, these providers work well for screenshot and rendering use cases:

You can also point proxy_id at any internal proxy you run yourself (Squid, HAProxy, an internal corporate proxy, etc.) — anything that speaks HTTPS proxy.

Example: Bright Data

Bright Data gives you a host, port, username, and password per zone. In the dashboard:

• Url: https://brd.superproxy.io
• Port: 33335 (or whatever your zone shows)
• Authentication: enabled, with the zone’s username (e.g. brd-customer-hl_xxxxxxxx-zone-residential) and password.

Example: ZenRows

ZenRows exposes a single proxy endpoint and uses your API key as the password.

• Url: https://superproxy.zenrows.com
• Port: 1338
• Authentication: enabled, with your ZenRows username and API key as the password.

Creating a proxy

Proxies are managed in the dashboard at https://htmlcsstoimage.com/dashboard/proxies.

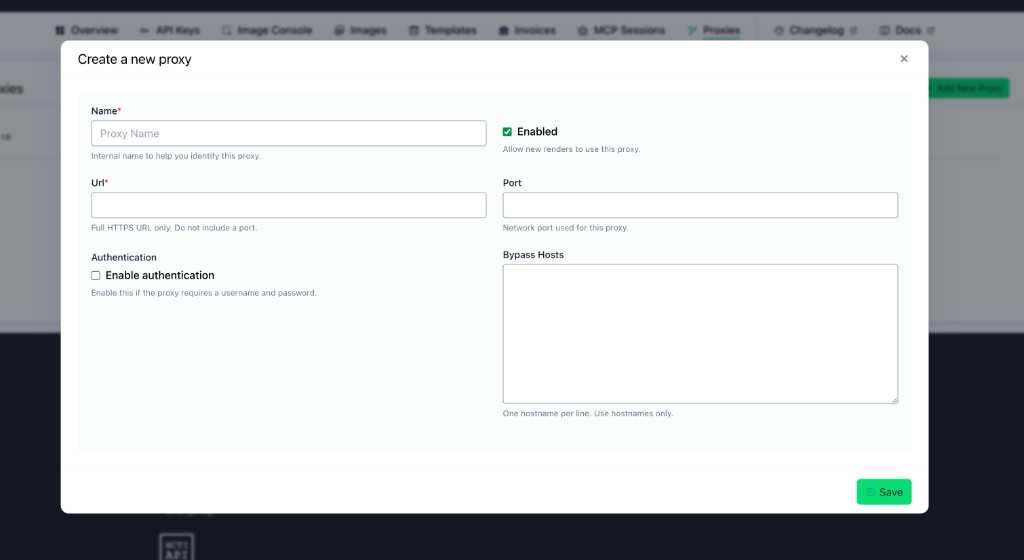

Click Add New Proxy and fill out the form:

After saving, the dashboard will show the proxy’s id. You’ll pass this id on each request to use the proxy.

Using a proxy when generating an image

To route a render through one of your proxies, pass its proxy_id on the create image request.

JSON request

{
  "url": "https://example.com",
  "proxy_id": "your-proxy-id"
}

cURL

curl -X POST https://hcti.io/v1/image \
  -u 'user-id:api-key' \
  -H 'Content-Type: application/json' \
  -d '{
        "url": "https://internal.example.com",
        "proxy_id": "your-proxy-id"
      }'

HTML/CSS with a proxy

proxy_id works for HTML/CSS renders too. Any external assets the page loads (images, fonts, scripts) will go through the proxy unless their host is in Bypass Hosts.

{
  "html": "<img src='https://internal.example.com/logo.png' />",
  "proxy_id": "your-proxy-id"
}

How it works

• Only outbound traffic from the render is proxied. Once an image is generated, it’s served from our CDN like any other image — viewing the image URL does not go through your proxy.
• Disabling a proxy is safe. Existing images keep working. Only new renders that try to use that proxy_id will be rejected.
• Bypass Hosts skip the proxy. Listed hostnames go out direct, which is helpful for high-volume third-party assets that don’t need to be routed through your infrastructure.
• The proxy must be reachable over the public internet from our render servers.

Troubleshooting

• Renders fail or time out — Confirm the proxy is reachable from the public internet, the port is correct, and any IP allowlist on the proxy includes our render IPs.
• Authentication errors — Double-check the username and password in the dashboard. If your proxy requires auth, the Enable authentication checkbox must be checked.
• Some assets aren’t loading — If those hosts are listed in Bypass Hosts they will skip the proxy. Remove them from the list if you want them proxied.
• proxy_id rejected — The proxy may be disabled. Re-enable it in the dashboard, or pass a different proxy_id.
